Samkoon SK-035UE Industrial Device Communication Panel HMI (Human Machine Interface)

Versatile interface hub for industrial automation

$120.00

Overview

The Samkoon SK Series HMI (Human Machine Interface) stands out as an exceptional and highly reliable solution for industrial automation. It is expertly engineered to seamlessly connect operators to machines via an intuitive touch screen panel and a state-of-the-art high-resolution LCD display, empowering real-time monitoring, precise parameter configuration, and effortless device communication.

Available in a range of sizes (3.5” to 15.6”), featuring a Linux-based high-performance system, and equipped with extensive communication ports (Ethernet, RS232/422/485, USB), the SK Series guarantees unmatched compatibility across various applications. When paired with Samkoon SKTool software, users can effortlessly create tailored operator interfaces for smarter, safer, and more efficient machine control.

Specifications

Specification	SK-035FE	SK-035UE
Physical Specifications
Dimensions (mm)	135 × 89 × 39	96 × 81 × 47
Cutout Dimensions (mm)	123 × 80	92 × 77
Weight (g)	200	200
Housing Material	ABS+PC Engineering Plastic	ABS+PC Engineering Plastic
Display Specifications
Display Size	3.5" (4:3)	3.5" (4:3)
Resolution (pixels)	320 × 240	320 × 240
Brightness (cd/m²)	350	350
Contrast Ratio	400:1	400:1
Display Colors	16.7 Million	16.7 Million
Touch Panel	4-wire High Precision	4-wire High Precision
Backlight	LED	LED
Hardware Configuration
CPU	Cortex A8 600MHz	Cortex A8 600MHz
Memory	128MB DDR3	128MB DDR3
Storage	128MB FLASH	128MB FLASH
Interfaces & Connectivity
USB Download Port	YES	YES
USB Host Port	NO	NO
Serial Interface	COM: RS232/422/485	COM: RS232/422/485
Network Interface	NO	NO
WiFi	NO	NO
4G	NO	NO
Electrical & Environmental
Power Supply	(DC12~24V) ±15%	(DC12~24V) ±15%
Power Consumption (W)	3	3
Operating Temperature	-20℃ ~ 55℃ (No Freezing)	-20℃ ~ 55℃ (No Freezing)
Operating Humidity	5 ~ 95% RH (No Condensation)	5 ~ 95% RH (No Condensation)
Vibration Resistance	10 ~ 25Hz (XYZ Direction 2G/30min)	10 ~ 25Hz (XYZ Direction 2G/30min)
ESD Protection	±6kV	±6kV
Certifications & Protection
Protection Level	IP65 (Front Panel)	IP65 (Front Panel)
Withstanding Voltage Test	1000V AC, 1 minute	1000V AC, 1 minute
FCC Compliance	FCC, Class A	FCC, Class A
CE Certification	EN55032 & EN55035	EN55032 & EN55035
Configuration Software	SKTOOL	SKTOOL

Wide Size Options & Powerful Hardware

The SK Series HMI covers a comprehensive range of display sizes from 3.5” to 15.6”, perfectly suited for different industrial environments. Powered by a Cortex A7 dual-core processor up to 1GHz, with 256MB Flash + 128MB DDR3 memory, it delivers rapid response, exceptional stability, and supports external U-disk storage.

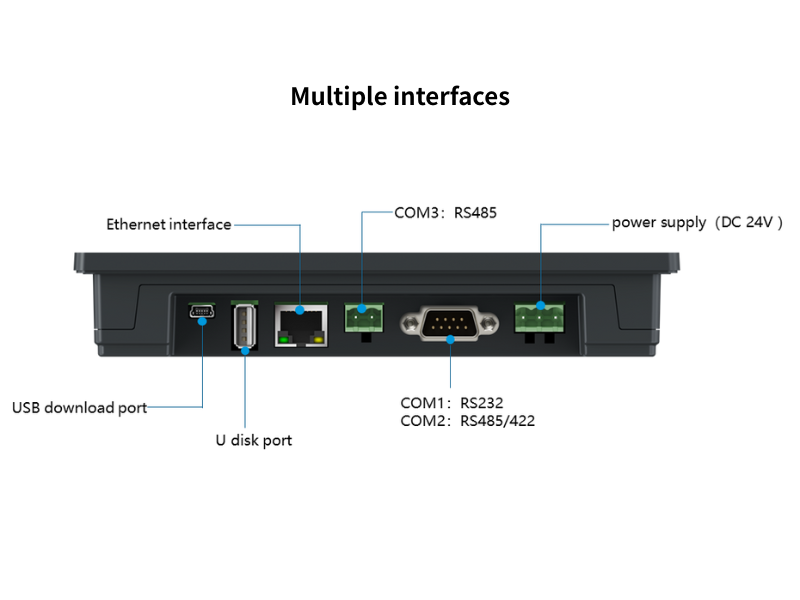

Multiple Communication Interfaces

Equipped with built-in RS232/422/485 ports, Ethernet, and USB, the SK Series supports versatile communication with PLCs, controllers, and other devices. Configuration updates can be executed seamlessly through USB, Ethernet, or U-disk, ensuring straightforward setup and maintenance.

User-Friendly Software with Multi-Language Support

The Samkoon SKTOOL software simplifies HMI development with its clear and user-friendly editor. It supports multiple languages including Chinese, English, Russian, and Turkish, providing global adaptability. Advanced features such as historical data trending, alarm management, and secure file encryption enhance usability and system reliability.

Industrial-Grade Reliability & Safety

Engineered for the toughest industrial environments, the SK Series features a stunning 1670000 true color display, reinforced IP65 front waterproof protection, and CE certification. With multiple security levels and encryption options, it ensures safe operations, making it a trusted choice for all industrial automation projects.
