PLC+HMI All-in-One

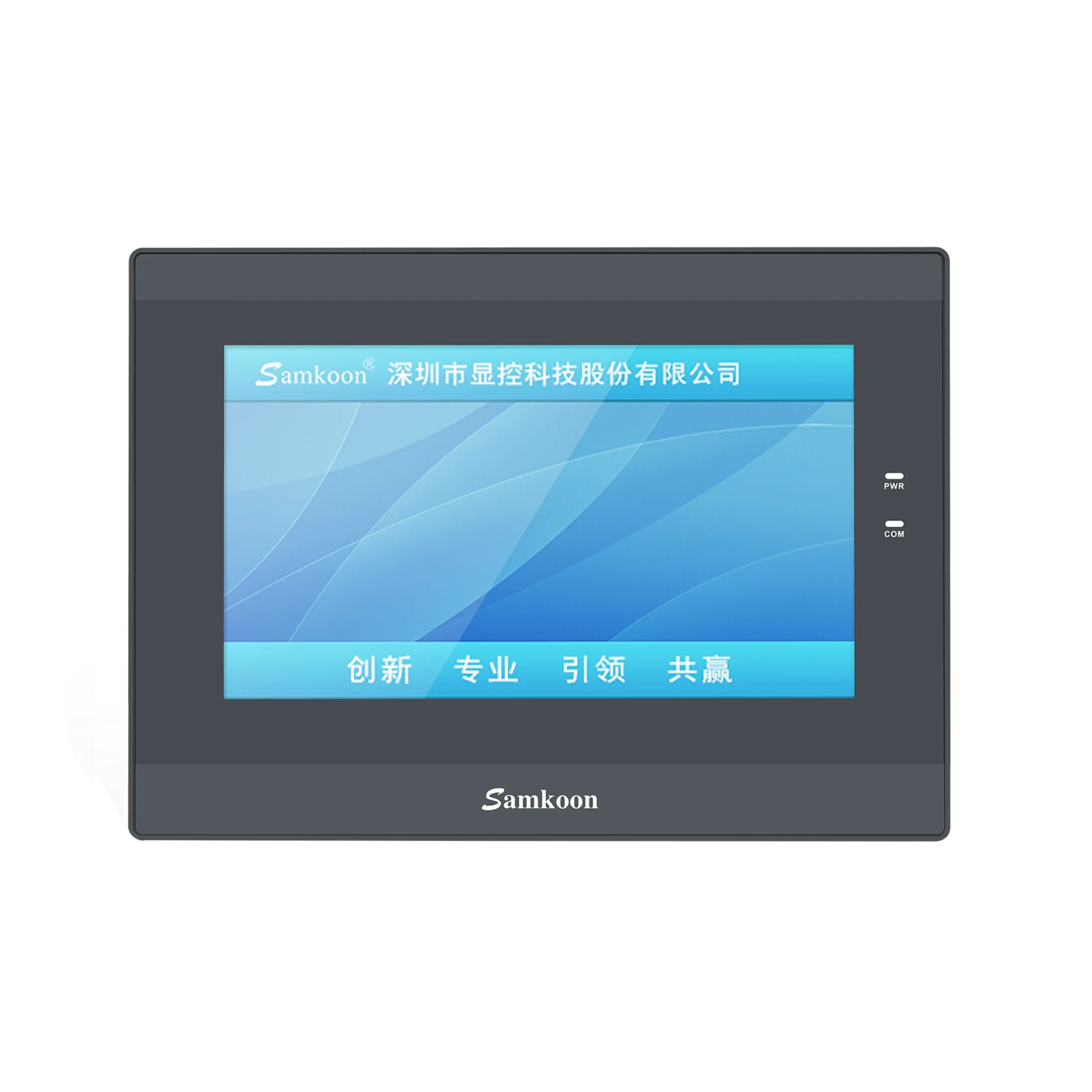

# Display Display Size : 7.0" Resolution : 800x480 Backlight Module : LED # Plc Specifications Built-in PLC : YES Programming Software : SKTOOL + SamSoar # Communication Serial Interface : RS232/RS485 USB : YES # Power Supply Power Supply : DC24V # Environment Working Environment Temperature : -20°C~55°C

# Display Display Size : 7.0" Resolution : 800x480 Backlight Module : LED # Plc Specifications Built-in PLC : YES Programming Software : SKTOOL + SamSoar # Communication Serial Interface : RS232/RS485 USB : YES # Power Supply Power Supply : DC24V # Environment Working Environment Temperature : -20°C~55°C

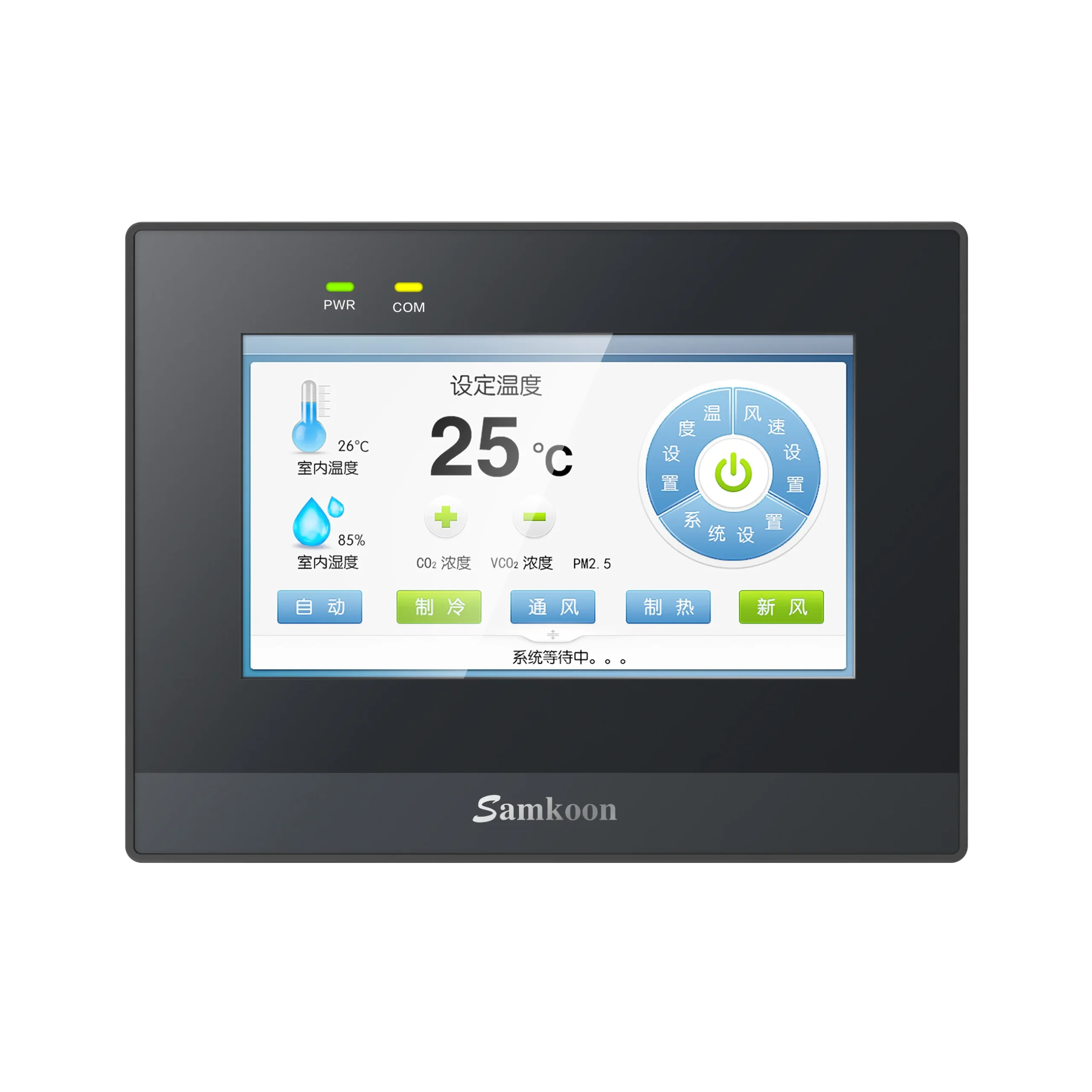

# Display Display Size : 4.3" Resolution : 480x272 Backlight Module : LED # Plc Specifications Built-in PLC : YES Programming Software : SKTOOL + SamSoar # Communication Serial Interface : RS232/RS485 USB : YES # Power Supply Power Supply : DC24V # Environment Working Environment Temperature : -20°C~55°C

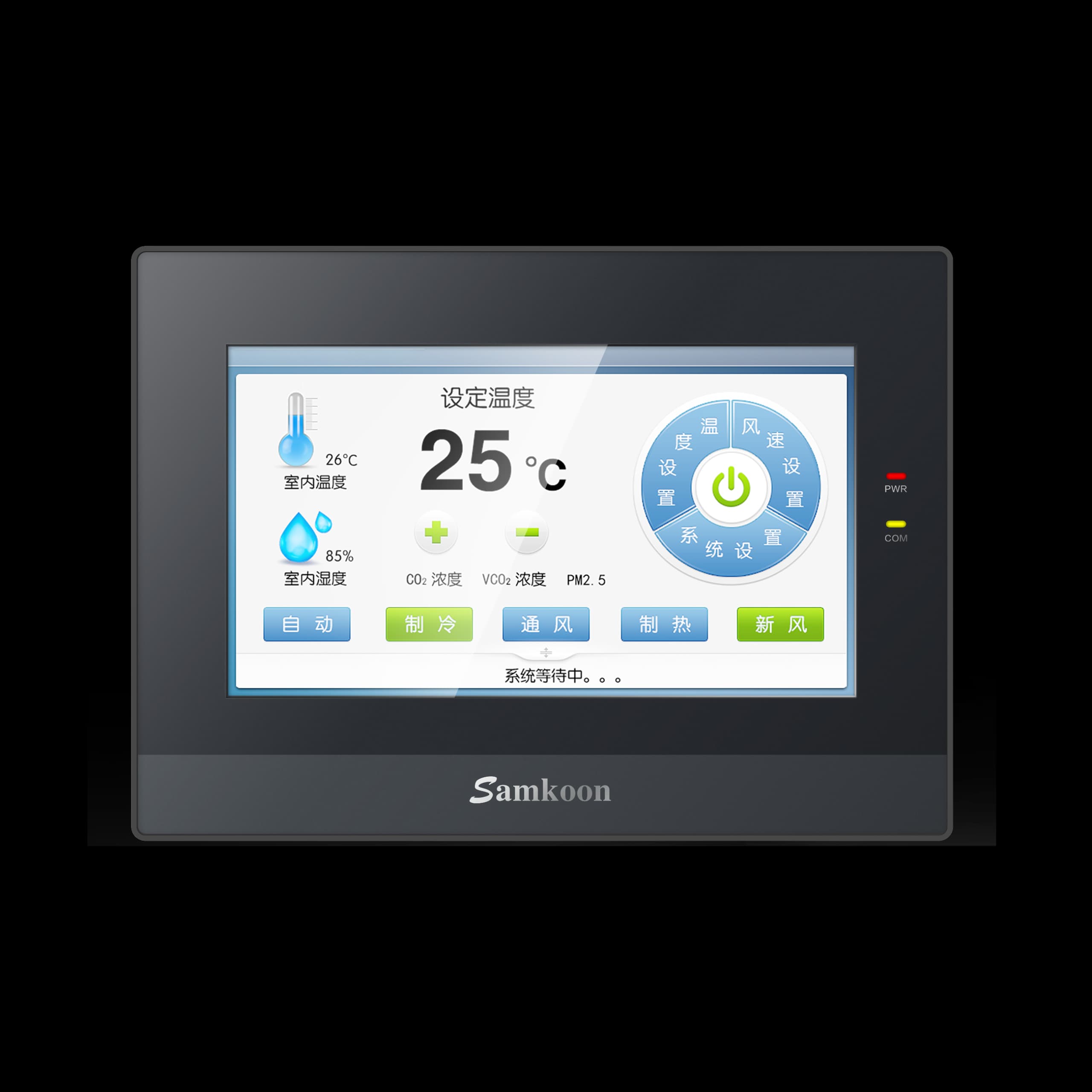

# Hardware Structure Dimensions : 204x148x45(mm) Installation Hole Size : 192x138(mm) Weight : 700g Shell Material : Engineering plastic ABS+PC Protection Class : IP65 (front panel) # Display Display Size : 7"(16:9) Resolution : 1024x600 Control Panel : 4-wire high precision touch panel Color : 16.77 million Backlight Module : LED Contrast : 400:1 Brightness : 450 cd/m² # Processor & Memory CPU : Cortex A7 1GHz dual-core Storage : 128MB FLASH + 128MB DDR3 # PLC Specifications Digital Input : 16 points Digital Output : 16 points (transistor, NPN) High-speed Pulse Output : 4 channels up to 200KHz High-speed Counter : 2 channels 200KHz + 2 channels 20KHz (single-phase); 2 channels 200KHz (A/B phase) I/O Expansion : Up to 16 additional I/O points supported Analog/Temperature Expansion : Up to 8 channels via expansion modules # Communication Serial Interface : RS485 Ethernet : 10/100M USB : YES (host + U-disk) # IoT IoT Expansion : Native 4G/WIFI module support # Power Supply Power Supply : DC 24V ±15% # Environment Working Environment Temperature : -20°C~55°C Working Environment Humidity : 5~95%RH (non-condensing) Programming Software : SKTOOL7.1 + SamSoar

# Hardware Structure Dimensions : 204x148x45(mm) Installation Hole Size : 192x138(mm) Weight : 700 Shell Material : engineering plastic ABS+PC # Display Display Size : 7"(16:9) Resolution : 1024x600 Control Panel : 4-wire high precision touch panel Color : 16.77 million Backlight Module : LED Contrast : 400:1 Brightness : 450cd/㎡ # Product Specification/Qualification Storage : 128MB DDR CPU : Cortex A7 1GHz. Dual Core High-Voltage Insulation Test : 1000V AC, 1 minute Static Test : ±6kV FCC Compatibility : Complies with FCC, Class A CE Qualification : Complies with EN55032 and EN55035 standards Level of Protection : IP65 (front panel) # Input And Output Digital Input : 16 bit, including 4 high speed counter Digital Output : 16 transistors, including 4 high speed 200KHZ pulse outputs Analog Input : 8-channel PT100/NI120；Through the plug-in, 8 channels can be connected Analog output : Through the plug-in, 8 channels can be connected # Power Port Power Supply : DC24V±15% Ethernet : YES USB Download : YES USB Port : YES PLC communication port : NO HMI communication port : 1 RS485 # Environment Working Environment Temperature : -20°C~55°C (no freezing) Working Environment Humidity : 5~95% (non-condensing) Quakeproof : 10 ~ 25HZ (XYZ direction 2G/30 minutes) # Software Programming Software : SKTOOL7.1

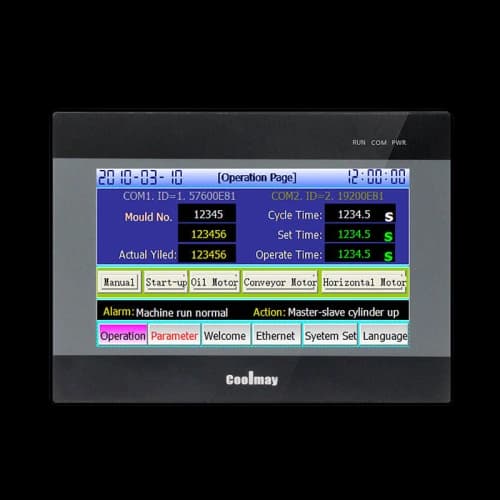

# Structure & Power Dimensions : 200x146x36(mm) Installation Hole Size : 192x138(mm) Weight : 535g No-load Power : 4W Input Voltage : DC 24V ±10% # Display Parameters Display : 7.0" TN 16.77 million true color resistive touch screen (supports portrait display) Active Area : 154x87(mm) Resolution : 800x480 Memory : 128MB RAM / 128MB NAND Flash CPU : 1GHz HMI Communication Ports : 1x Type-C download port, 1x USB 2.0, 1x RS232 (built-in) HMI Programming Software : Coolmay Vcool # PLC Controller Parameters Digital I/O : 24 Inputs / 20 Outputs (Transistor - MT) Input Level : Passive NPN or PNP, optocoupler isolated common end Output Level : Fixed MT, low level NPN, COM negative Output Load : MT output 0.5A/point, 2A/4-point COM, 4A/8-point COM High-speed Counter : 6 channels single-phase 100KHz or 2 channels A/B phase 100KHz Note : X5 and Y3 cannot be simultaneously used for high-speed counting and pulse output; X1/X2/X4 soft counting limited to 50KHz max when affected by pulses High-speed Pulse Output : 4 channels 100KHz (Y0-Y3) PLC Communication Ports : 1x Type-C programming port, 1x RS232, 1x RS485 (A/B) PLC Programming Software : Coolmay VTool Pro # Analog I/O (Optional — requires specific ordering code) Max Analog Input : Up to 8AD2DA (customizable to 8AD8DA) Analog Input Options : Option 1: 2ch 0-10V + 2ch 0-20mA; Option 2: 2ch 0-10V + 2ch 0-20mA + 4ch Thermocouple (E,K,S,T,J with negative temp); Option 3: 2ch 0-10V + 2ch 0-20mA + 4ch PT100 Analog Output : Fixed 1ch 0-10V + 1ch 0-20mA Note : Analog configurations require specific ordering codes (-4AD-PT, -4AD-TC)

# Structure & Power Dimensions : 200x146x36(mm) Installation Hole Size : 192x138(mm) Weight : 575g No-load Power : 5W Input Voltage : DC 24V ±10% # Display Parameters Display : 7.0" TN 16.77 million true color resistive touch screen (supports portrait display) Active Area : 154x87(mm) Resolution : 800x480 Memory : 128MB RAM / 128MB NAND Flash CPU : 1GHz HMI Communication Ports : 1x Type-C download port, 1x USB 2.0, 1x RS232 (built-in) HMI Programming Software : Coolmay Vcool # PLC Controller Parameters Digital I/O : 24 Inputs / 20 Mixed Outputs (Y0-Y13: 12 Transistors MT, Y14-Y23: 8 Relays MR) Input Level : Passive NPN or PNP, optocoupler isolated common end Output Load : Mixed MRT output (MT side: 0.5A/point, 2A/4-point COM, 4A/8-point COM; MR side: 2A/point, 8A/4-point COM, normally open dry contact) High-speed Counter : 6 channels single-phase 100KHz or 2 channels A/B phase 100KHz Note : X5 and Y3 cannot be simultaneously used for high-speed counting and pulse output; X1/X2/X4 soft counting limited to 50KHz max when affected by pulses High-speed Pulse Output : 4 channels 100KHz (Y0-Y3, on transistor MT side) PLC Communication Ports : 1x Type-C programming port, 1x RS232, 1x RS485 (A/B) PLC Programming Software : Coolmay VTool Pro # Analog I/O (Optional — requires specific ordering code) Max Analog Input : Up to 8AD2DA (customizable to 8AD8DA) Analog Input Options : Option 1: 2ch 0-10V + 2ch 0-20mA; Option 2: 2ch 0-10V + 2ch 0-20mA + 4ch Thermocouple (E,K,S,T,J with negative temp); Option 3: 2ch 0-10V + 2ch 0-20mA + 4ch PT100 Analog Output : Fixed 1ch 0-10V + 1ch 0-20mA Note : Analog configurations require specific ordering codes (-4AD-PT, -4AD-TC)

# Structure & Power Dimensions : 134x102x34(mm) Installation Hole Size : 120x94(mm) Weight : 256g No-load Power : 2W Input Voltage : DC 24V ±10% # Display Parameters Display : 4.3" IPS 16.77 million true color resistive touch screen (supports portrait display) Active Area : 97x56(mm) Resolution : 480x272 Memory : 128MB RAM / 128MB NAND Flash CPU : 1GHz HMI Communication Ports : 1x Type-C download port, 1x USB 2.0, 1x RS232 (built-in) HMI Programming Software : Coolmay Vcool # PLC Controller Parameters Digital I/O : 12 Inputs / 12 Outputs (Transistor - MT) Input Level : Passive NPN or PNP, optocoupler isolated common end Output Level : Fixed MT, low level NPN, COM negative Output Load : MT output 0.5A/point, 4A/12-point COM High-speed Counter : 6 channels single-phase 100KHz or 2 channels A/B phase 100KHz Note : X5 and Y3 cannot be simultaneously used for high-speed counting and pulse output; X1/X2/X4 soft counting limited to 50KHz max when affected by pulses High-speed Pulse Output : 4 channels 100KHz (Y0-Y3) PLC Communication Ports : 1x Type-C programming port, 1x RS232, 1x RS485 (A/B) PLC Programming Software : Coolmay VTool Pro # Analog I/O (Optional — requires specific ordering code) Max Analog Input : Up to 5AD2DA (AD4 configurable as NTC10K only) Analog Input Options : Option 1: 2ch 0-10V + 2ch 0-20mA + 1ch NTC10K; Option 2: 4ch Thermocouple (E,K,S,T,J with negative temp); Option 3: 4ch PT100 + 1ch NTC10K Analog Output : Fixed 1ch 0-10V + 1ch 0-20mA Note : Applicable to PCB boards manufactured after Dec 2025. Analog configurations require specific ordering codes (-4AD-PT, -4AD-TC)

# Structure & Power Dimensions : 134x102x34(mm) Installation Hole Size : 120x94(mm) Weight : 283g No-load Power : 2W Input Voltage : DC 24V ±10% # Display Parameters Display : 4.3" IPS 16.77 million true color resistive touch screen (supports portrait display) Active Area : 97x56(mm) Resolution : 480x272 Memory : 128MB RAM / 128MB NAND Flash CPU : 1GHz HMI Communication Ports : 1x Type-C download port, 1x USB 2.0, 1x RS232 (built-in) HMI Programming Software : Coolmay Vcool # PLC Controller Parameters Digital I/O : 12 Inputs / 12 Outputs (Relay - MR) Input Level : Passive NPN or PNP, optocoupler isolated common end Output Level : Fixed MR, normally open dry contact Output Load : MR output 2A/point, 8A/12-point COM High-speed Counter : 6 channels single-phase 100KHz or 2 channels A/B phase 100KHz Note : X5 and Y3 cannot be simultaneously used for high-speed counting and pulse output; X1/X2/X4 soft counting limited to 50KHz max when affected by pulses High-speed Pulse Output : None (not supported on MR relay models) PLC Communication Ports : 1x Type-C programming port, 1x RS232, 1x RS485 (A/B) PLC Programming Software : Coolmay VTool Pro # Analog I/O (Optional — requires specific ordering code) Max Analog Input : Up to 5AD2DA (AD4 configurable as NTC10K only) Analog Input Options : Option 1: 2ch 0-10V + 2ch 0-20mA + 1ch NTC10K; Option 2: 4ch Thermocouple (E,K,S,T,J with negative temp); Option 3: 4ch PT100 + 1ch NTC10K Analog Output : Fixed 1ch 0-10V + 1ch 0-20mA Note : Applicable to PCB boards manufactured after Dec 2025. Analog configurations require specific ordering codes (-4AD-PT, -4AD-TC)
