HMI

# Structural Specifications Dimensions : 273×211×40（mm） Installation Hole Size : 259× 201（mm） Weight : 1050g Shell Material : industrial plastic ABS+PC # Display Display Size : 10.2"(16:9) Resolution : 1024 × 600 Control Panel : 4-port high precision touch pad Color : 16770000 Backlight Module : LED Contrast : 400:1 Brightness : 450 # Product Specification/Qualification Storage : 128MB FLASH+128MB DDR3 CPU : Cortex A7 1GHz.dual core High-Voltage Insulation Test : 1000V AC,1 minute Static Test : ±6kV FCC Compatibility : qualified byFCC，Class A CE Qualification : qualified by En55032 and EN55035 Level of Protection : Ip65( front panel） # Power Supply/Port Power Supply : (DC12~24V)±15% Power Consumption : 7W Serial Interface : COM1:RS232 COM2 :RS485/422 COM3(485) USB Download : YES USB Port : YES SD Card : NO Ethernet Port : YES CAN : NO # Network Port WiFi : YES（optional） 4G : YES（optional） Ethernet : YES 3G : NO # Environment Working Environment Temperature : -20°C~55°C(no freeze) Working Environment Humidity : 5~95%RH(condensation） Quakeproof : 10～25HZ(XYZ direction 2G/30 minutes） # Software Programming Software : SKTOOL7.1

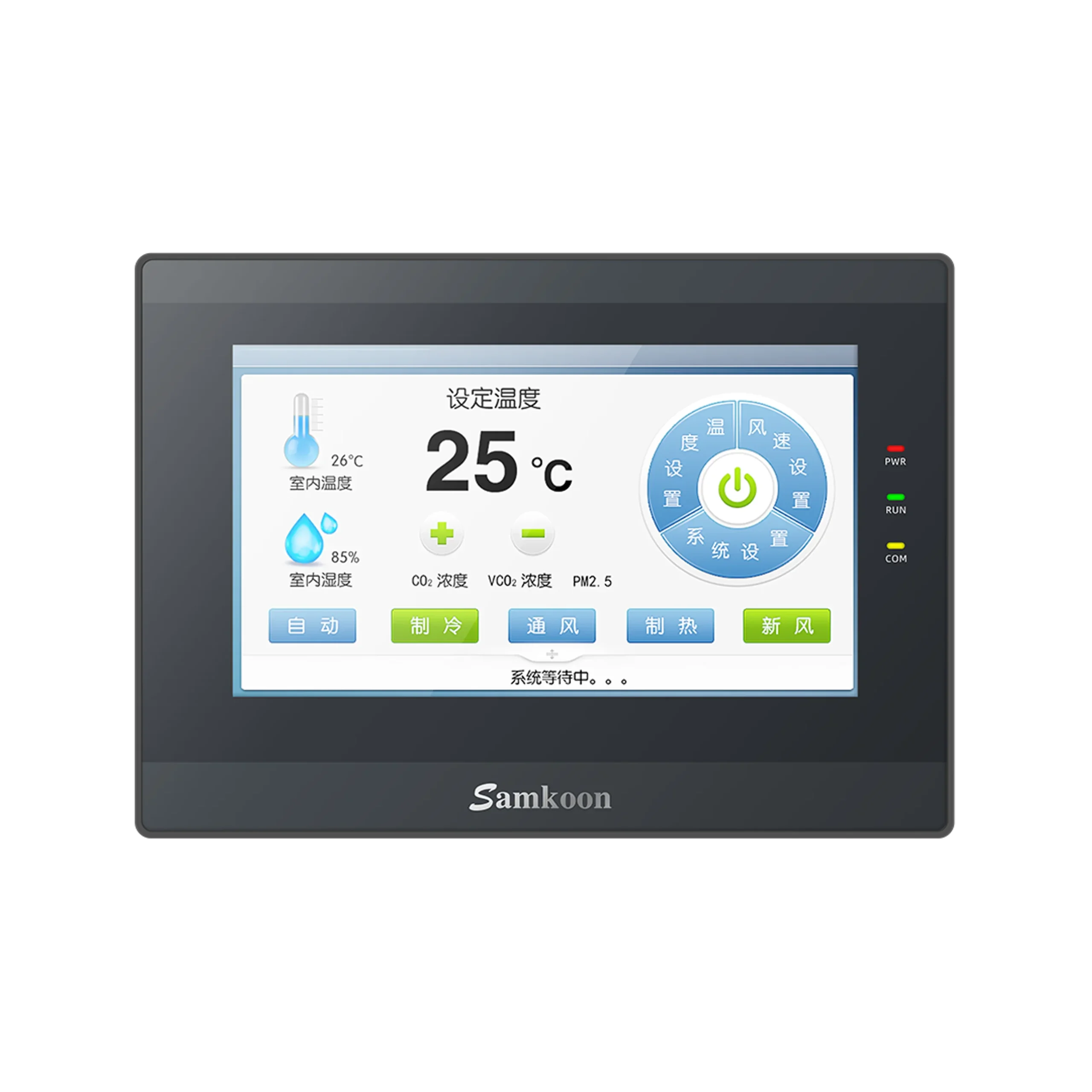

# Structural Specifications Dimensions : 203×145×35（mm） Installation Hole Size : 192 × 138（mm） Weight : 700g Shell Material : industrial plastic ABS+PC # Display Display Size : 7"(16:9) Resolution : 1024X600 Control Panel : 4-port high precision touch pad Color : 16770000 Backlight Module : LED Contrast : 400:1 Brightness : 450 # Product Specification/Qualification Storage : 128MB FLASH+128MB DDR3 CPU : Cortex A7 1GHz.dual core High-Voltage Insulation Test : 1000V AC,1 minute Static Test : ±6kV FCC Compatibility : qualified byFCC，Class A CE Qualification : qualified by En55032 and EN55035 Level of Protection : Ip65( front panel） # Power Supply/Port Power Supply : (DC12~24V)±15% Power Consumption : 4W Serial Interface : COM1:RS232 COM2 :RS485/422 COM3(485) USB Download : YES USB Port : YES SD Card : NO Ethernet Port : YES CAN : NO # Network Port WiFi : YES（optional） 4G : YES（optional） Ethernet : YES 3G : NO # Environment Working Environment Temperature : -20°C~55°C(no freeze) Working Environment Humidity : 5~95%RH(condensation） Quakeproof : 10～25HZ(XYZ direction 2G/30 minutes） # Software Programming Software : SKTOOL7.1

# Structural Specifications Dimensions : 273x211x40 (mm) Installation Hole Size : 259x 201 (mm) Weight : 1050g Shell Material : industrial plastic ABS+PC # Display Display Size : 10.2"(16:9) Resolution : 1024 x 600 Control Panel : 4-port high precision touch pad Color : 16770000 Backlight Module : LED Contrast : 400:1 Brightness (cd/m²) : 450 # Product Specification/Qualification Storage : 128MB FLASH+128MB DDR3 CPU : Cortex A7 1GHz.dual core High-Voltage Insulation Test : 1000V AC,1 minute Static Test : ±6kV FCC Compatibility : qualified byFCC, Class A CE Qualification : qualified by En55032 and EN55035 Level of Protection : IP65( front panel) # Power Supply/Port Power Supply : (DC12~24V)±15% Power Consumption : 7W Serial Interface : COM1:RS232 COM2 :RS485/422 COM3(485) USB Download : YES USB Port : YES SD Card : NO Ethernet Port : YES CAN : NO # Network Port WiFi : YES (optional) 4G : YES (optional) Ethernet : YES 3G : NO # Environment Working Environment Temperature : -20°C~55°C (no freeze) Working Environment Humidity : 5~95%RH (condensation) Quakeproof : 10～25HZ (XYZ direction 2G/30 minutes) # Software Programming Software : SKTOOL7.1

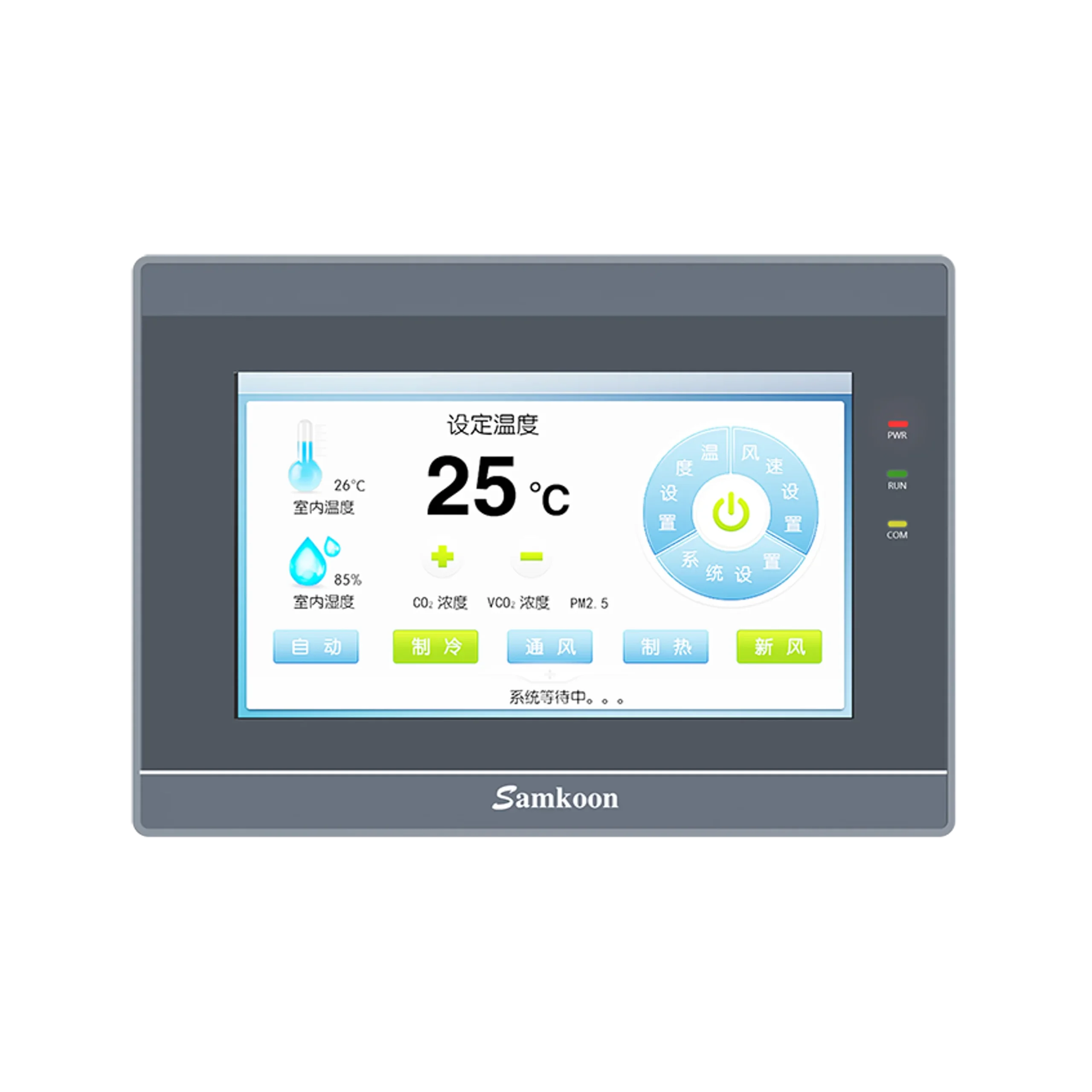

# Structural Specifications Dimensions : 205x145x40mm Installation Hole Size : 192x138mm Weight : 700 Shell Material : industrial plastic ABS+PC # Display Display Size : 7"(16:9) Resolution : 800x480 Control Panel : 4-port high precision touch pad Color : 16770000 Backlight Module : LED Contrast : 400:1 Brightness : 450 # Product Specification/Qualification Storage : 128MB FLASH+128MB DDR3 CPU : 4-core A7 800MHz High-Voltage Insulation Test : 1000V AC,1 minute Static Test : class 4±8kV FCC Compatibility : qualified byFCC，Class A CE Qualification : qualified by En55032 and EN55035 Level of Protection : Ip65( front panel） # Power Supply/Port Power Supply : (DC12~24V)±15% Power Consumption : 5W Serial Interface : COM1:RS232/422/485 USB Download : YES USB Port : YES SD Card : NO Ethernet Port : NO CAN : NO # Network Port WiFi : NO 4G : NO Ethernet : NO 3G : NO # Environment Working Environment Temperature : -20°C~55°C(no freeze) Working Environment Humidity : 5~95%RH(condensation） Quakeproof : 10～25HZ(XYZ direction 2G/30 minutes） # Software Programming Software : SKTOOL6.0/6.2/7.0

# Structural Specifications Dimensions : 139×86×31（mm） Installation Hole Size : 132 × 80（mm） Weight : 200g Shell Material : industrial plastic ABS+PC # Display Display Size : 4.3"(16:9) Resolution : 480 × 272 Control Panel : 4-port high precision touch pad Color : 16770000 Backlight Module : LED Contrast : 400:1 Brightness : 400 # Product Specification/Qualification Storage : 128MB FLASH+128MB DDR3 CPU : Cortex A7 1GHz.dual core High-Voltage Insulation Test : 1000V AC,1 minute Static Test : class 4±8kV FCC Compatibility : qualified byFCC，Class A CE Qualification : qualified by En55032 and EN55035 Level of Protection : Ip65( front panel） # Power Supply/Port Power Supply : (DC12~24V)±15% Power Consumption : 3W Serial Interface : COM1:RS232 COM2 :RS485/422 USB Download : YES USB Port : YES SD Card : NO Ethernet Port : NO CAN : NO # Network Port WiFi : NO 4G : NO Ethernet : NO 3G : NO # Environment Working Environment Temperature : -20°C~55°C(no freeze) Working Environment Humidity : 5~95%RH(condensation） Quakeproof : 10～25HZ(XYZ direction 2G/30 minutes） # Software Programming Software : SKTOOL7.1
