Product Details

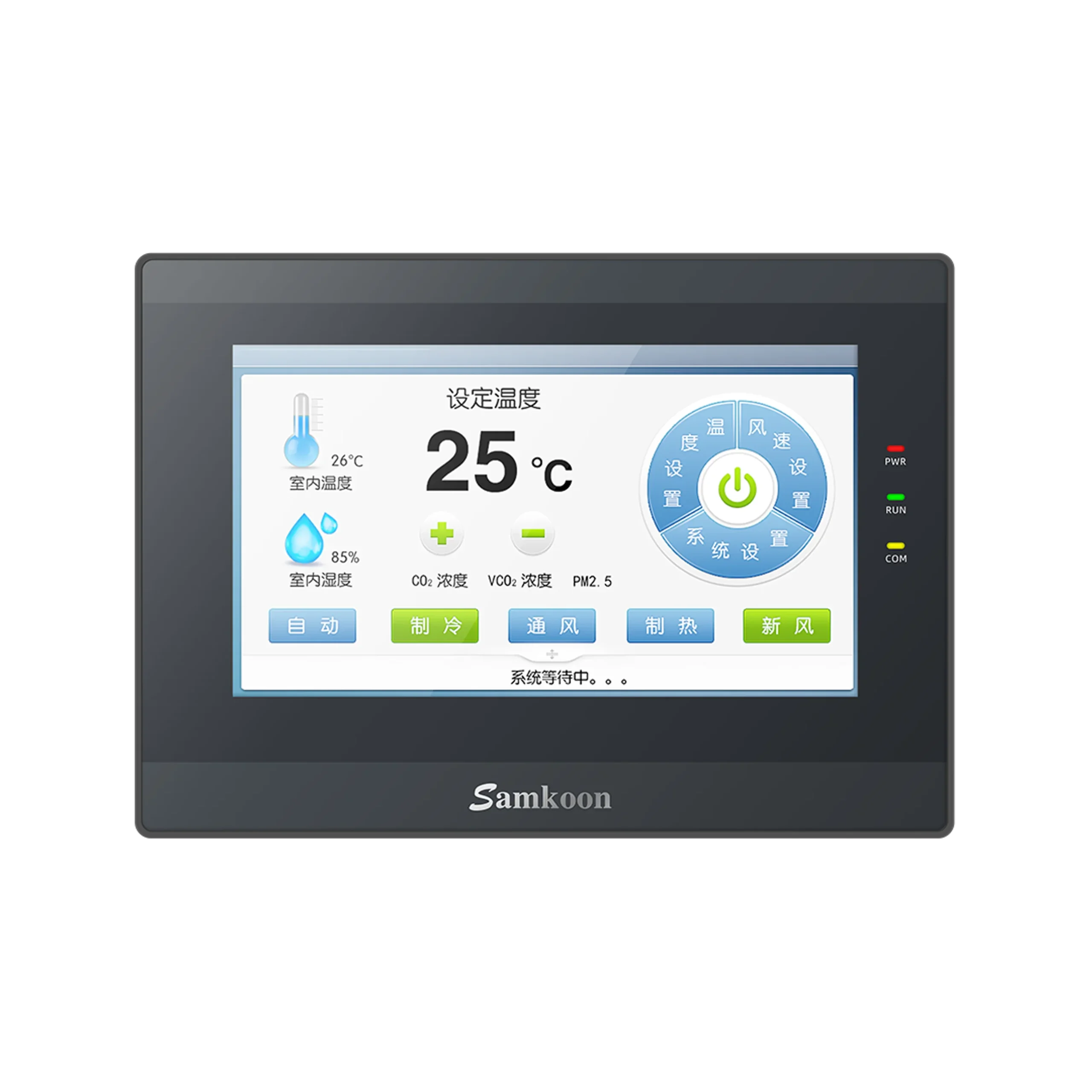

SK-102QS-G: 10.2" Large-Screen Industrial IoT SCADA Terminal
A large 10.2-inch Industrial IoT terminal for complex monitoring. Driven by multi-core processing and native cloud connectivity, it delivers an intuitive dashboard supporting remote diagnostics.
Product Features
Technical Specifications
Structural Specifications
| Dimensions | 273×211×40（mm） |
| Installation Hole Size | 259× 201（mm） |
| Weight | 1050g |
| Shell Material | industrial plastic ABS+PC |
Display
| Display Size | 10.2"(16:9) |
| Resolution | 1024 × 600 |
| Control Panel | 4-port high precision touch pad |
| Color | 16770000 |
| Backlight Module | LED |
| Contrast | 400:1 |
| Brightness | 450 |
Product Specification/Qualification
| Storage | 128MB FLASH+128MB DDR3 |
| CPU | Cortex A7 1GHz.dual core |
| High-Voltage Insulation Test | 1000V AC,1 minute |
| Static Test | ±6kV |
| FCC Compatibility | qualified byFCC，Class A |
| CE Qualification | qualified by En55032 and EN55035 |
| Level of Protection | Ip65( front panel） |
Power Supply/Port
| Power Supply | (DC12~24V)±15% |
| Power Consumption | 7W |

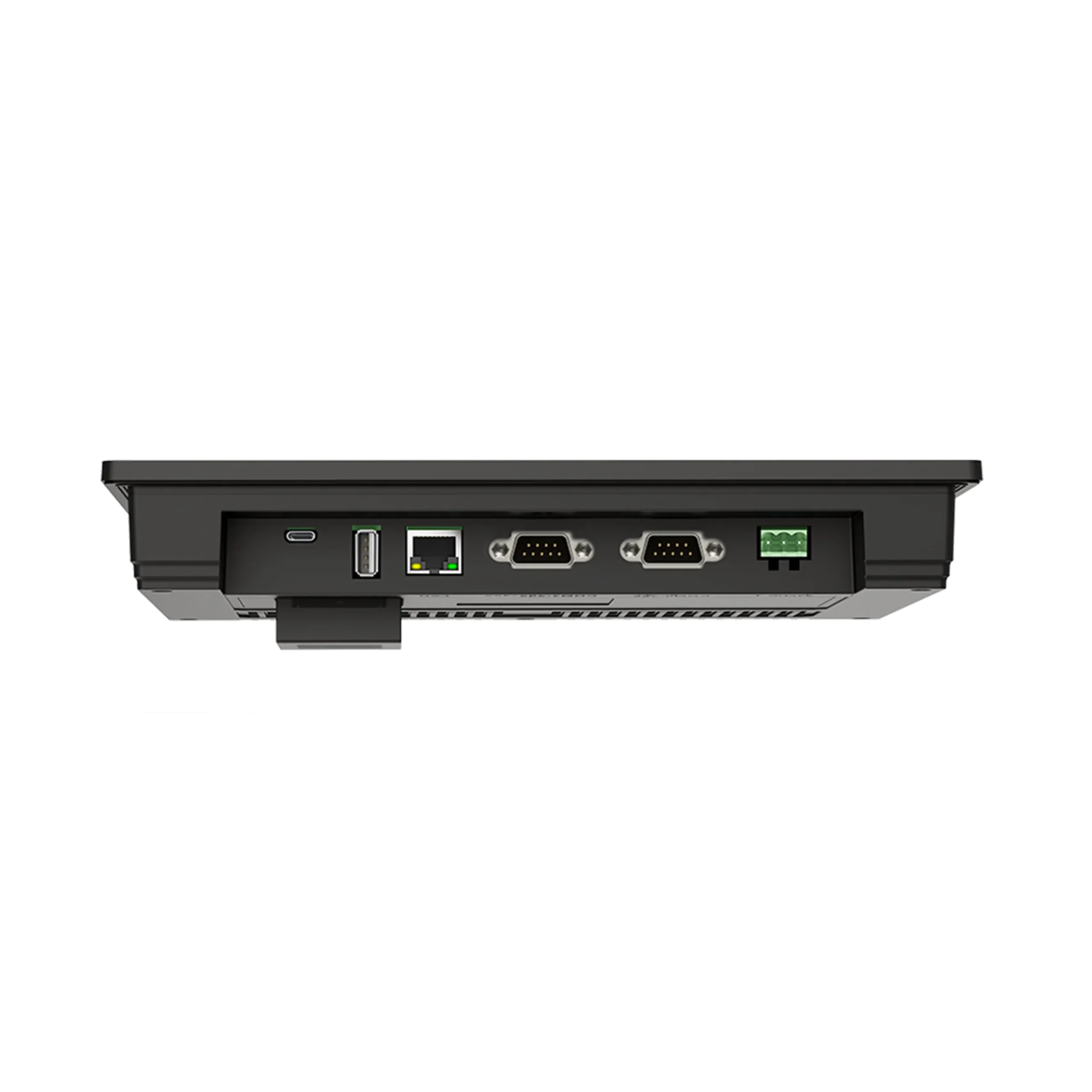

| Serial Interface | COM1:RS232 COM2 :RS485/422 COM3(485) |
| USB Download | YES |
| USB Port | YES |
| SD Card | NO |
| Ethernet Port | YES |
| CAN | NO |
Network Port
| WiFi | YES（optional） |
| 4G | YES（optional） |
| Ethernet | YES |
| 3G | NO |
Environment
| Working Environment Temperature | -20°C~55°C(no freeze) |
| Working Environment Humidity | 5~95%RH(condensation） |
| Quakeproof | 10～25HZ(XYZ direction 2G/30 minutes） |
Software
| Programming Software | SKTOOL7.1 |
Frequently Asked Questions
What is the warranty period for this product?
Standard 1-year warranty covering manufacturing defects and component failures. Extended coverage available upon request.
Do you provide technical support?
Technical support covers installation guidance, troubleshooting, and programming assistance. Availability varies by product line.
What is the lead time?
In-stock items ship within 24 hours. Custom configurations typically require 3–5 business days for preparation.
Can this integrate with existing systems?
Yes — standard industrial protocols are supported including Modbus, Profibus, and Ethernet/IP for seamless integration.
Do you offer volume discounts?
Tiered pricing is available for bulk orders. Contact our sales team for a customized quote.
What certifications does this carry?
CE certified and compliant with relevant industrial safety standards. Additional certifications available per product line.
