Product Details

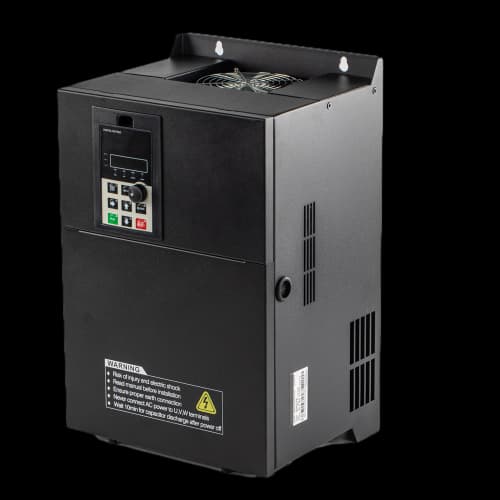

EMHEATER EM10-G2-075 Sensorless Vector VFD - 220V 75kW
EM10-G2-075: 75kW 3-Phase 220V Sensorless Vector VFD｜SVC/FVC/VF triple control modes, built-in PID, RS485 Modbus — versatile drive for general industrial applications.
Product Features
Technical Specifications
Input and Output
| Input Voltage | 220V ±15%, Three Phase |
| Input Frequency | 47~63Hz |
| Output Voltage | 0-220V, Three Phase |
| Output Frequency | 0~320Hz (SVC), 0~3200Hz (V/F) |
| Carrier Frequency | 0.5~16.0kHz |
Model Data
| Model | EM10-G2-075 |
| Rated Power | 75kW |
| Rated Current | 304A |
Control Performance
| Control Mode | SVC, FVC (optional), V/F Control |
| Startup Torque | 0.5Hz/150% (SVC), 0Hz/180% (FVC) |
| Speed Range | 1:100 (SVC), 1:1000 (FVC) |
| Speed Accuracy | ±0.5% (SVC), ±0.02% (FVC) |
| Torque Boost | 0.1%~30% manual/auto |
Protection
| Overload | 150% rated current 60s, 180% rated current 3s |
| Protection | Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Phase Loss |
Environment
| Operating Temp | -10°C ~ +40°C (de-rate above 40°C) |
| Storage Temp | -20°C ~ +60°C |
| Humidity | <95% RH, non-condensing |
| Altitude | <1000m (de-rate 10% per 1500m above) |
| Vibration | <5.9 m/s² (0.6g) |
Physical
| Dimensions | 475 x 335 x 720 mm |
| Weight | 28 kg |
| Enclosure | Sheet Metal, IP20 |
What's Included
Packing List
1x EM10 Series Frequency Inverter1x User Manual1x Control Terminal Connector1x Mounting Bracket
