Product Details

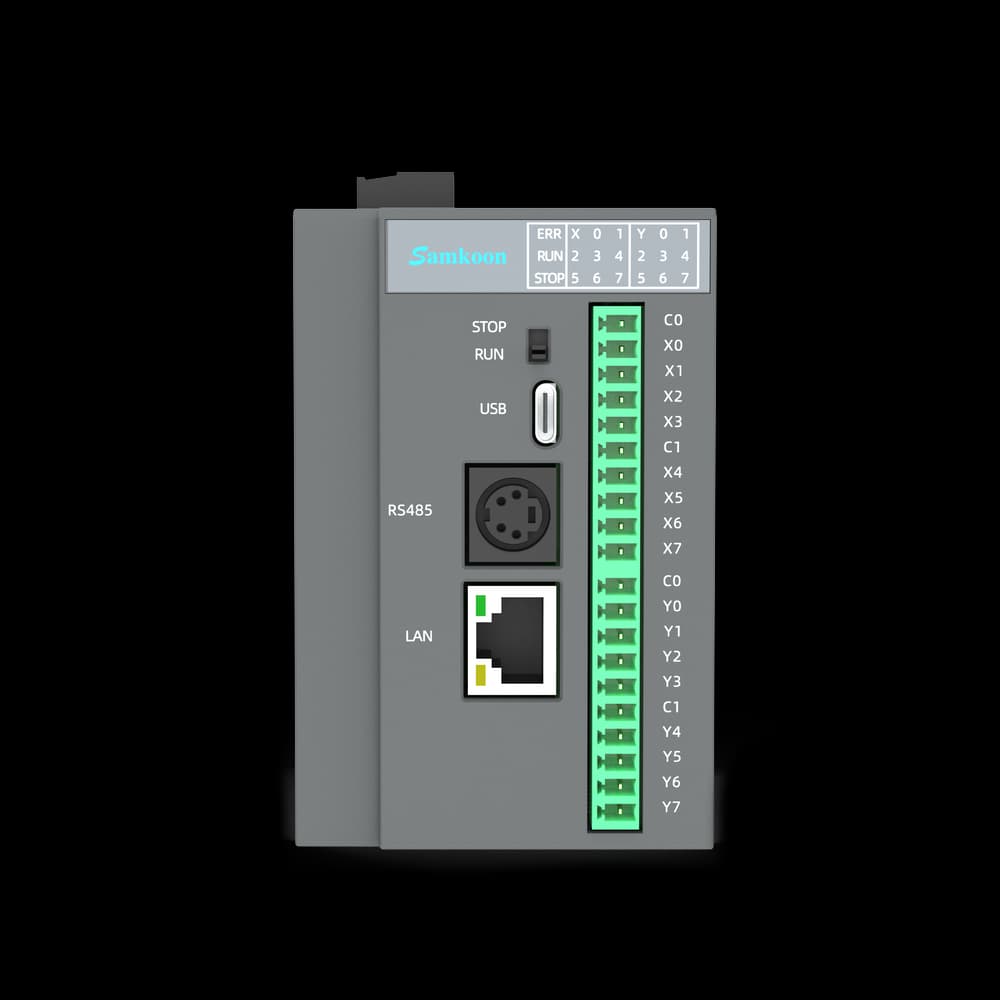

FAT-16MT-DC-E: Compact 16-Point Ethernet Micro PLC
A compact 16-point Ethernet Micro PLC for tight control cabinets. Featuring high-frequency pulse outputs and nanosecond execution, it offers engineers flexible, highly scalable IT/OT logic control.
Product Features
Technical Specifications
Structural and Environment
| Dimensions | 64×97×72(mm) |
| Weight | 239g |
| Working Environment Temperature | -20°C~55°C(no freeze) |
| Working Environment Humidity | 5~95%RH(condensation) |
| Quakeproof | 10~25Hz(XYZ direction 2G/30 minutes) |
Power
| Power Supply | DC 24V±20% |
Input Parameter
| Digital Input | 8 |
| Analog Input | NO |
| Input connection | support sink/source type， through the internal co-point terminal S/S and external co-line wiring to transform |
| Input Signal Voltage | DC24V±20% |
| AB Phase Counter | 2-way AB phase(X0X1、X2X3) 200kHz |
| High-speed counter | 2 single-phase(X0、X2) 200KHZ；2 single-phase(X1、X3) 20KHZ |
Output Parameter
| Digital Output | 8 |
| Analog output | NO |
| Output type | ransistor/NPN |
| Pulse Output | 4 channels up to 200KHZ respectively |
| Maximum resistive load | 6W |
| Output load impedance | single point 0.3A, total point 1A |
Qualification
| FCC Compatibility | qualified by FCC，Class A |
| High-Voltage Insulation Test | 1000V AC,1 minute |
| CE Qualification | qualified by EN55032 and EN55035 |
| Level of Protection | IP30 |
Interface
| RS232 | NO |
| RS485 | RS485 2 supports seria |
| RJ45 | NO |
| Ethernet | YES |
| USB Port | support upload and download，online monitor |
Software
| Programming Software | SamSoar2022 |
